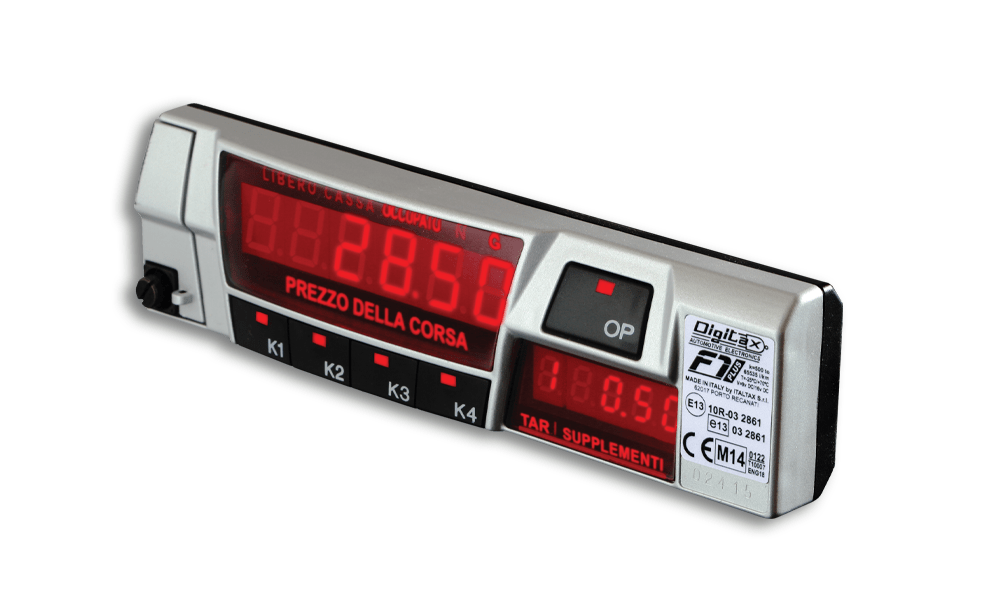

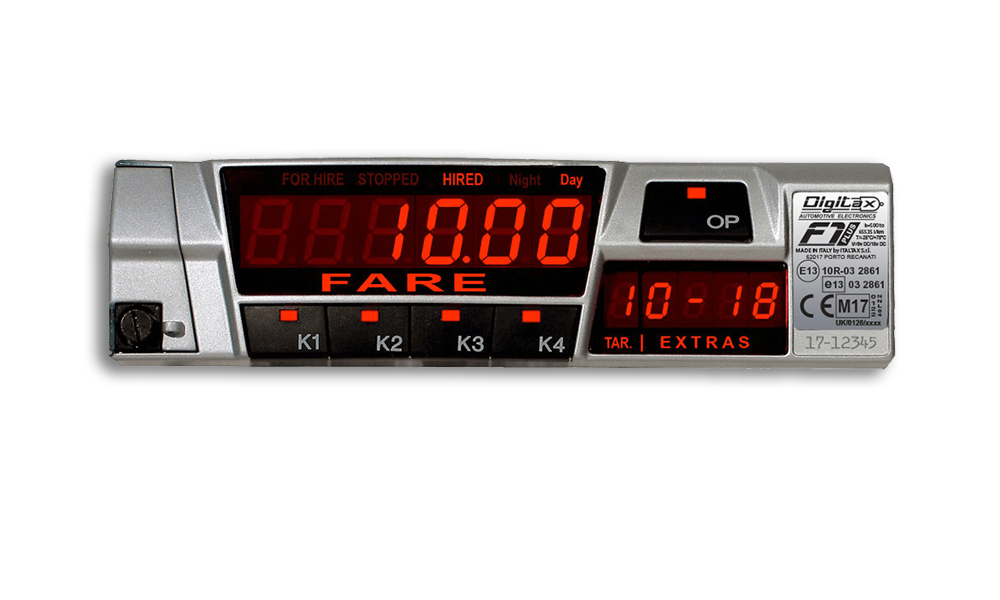

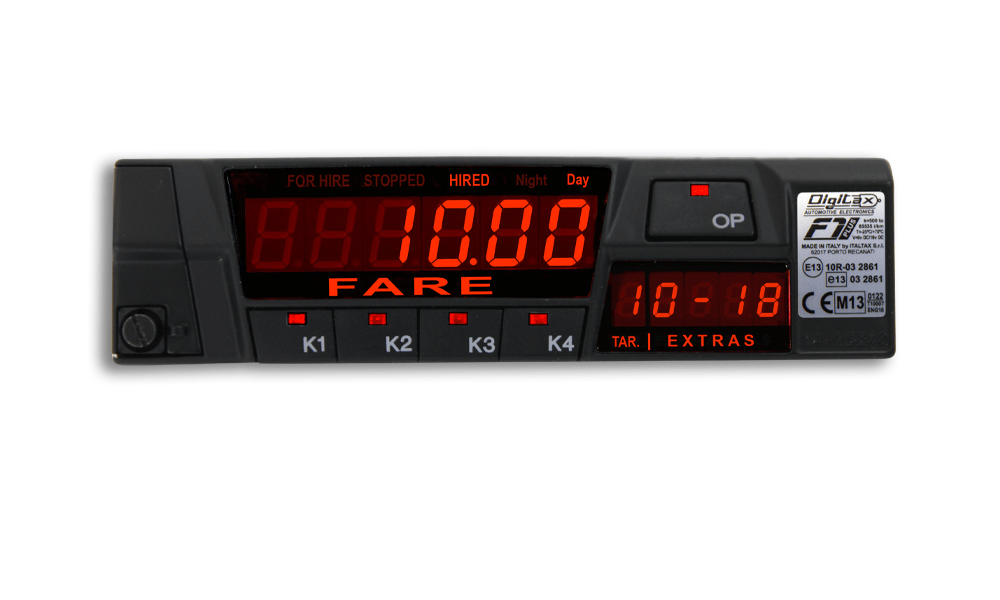

F1 Plus Taximeter
Electronic taximeter, printer capable, 64 fully independent and smart tariffs automatically managed by the time, date, distance, fare amount; self-powered clock/calendar, 45 counters for driver’s and owner’s accountancy, fully programmable, memory buffer.
| Specifications | |
| Dimension (WxHxD mm) | 17 x 4,5 x 2,5 |
| Weight | Gr. 350 ca. |
| Displays | Fare counter: – 6 Digits Red High-Luminosity Led Extra counter: – 5 Digits Red High-Luminosity Led Illuminated Front Text 1 Digit tariff index |
| Power Supply | From 8,5 to 16 Volts |
| Temperature | From -15 to 70 °C. |
| Relative Humidity | 95% |
| Mechanical Strenght | 3 g |
| Distance Unit | From 10 cm. to 6553 meters Step 10 cm. |
| Waiting Time Unit | From 0,1 sec. to 6553 Step 0,1 sec. |
| Totalizator Mode | Dataflash 1Mb – 45 + 45 Statistic Memory – 12 x 45 Monthly Statistic – 50 x 45 Statistics for each Driver |
| Tariff Structure | 63 Smart and fully indipendent Tariffs +8 Night Tariffs +8 Holiday Tariffs +4 Autofare Tariffs +4 Autidistance Tariffs |
| Tariff Choice | Manual Radio Automatic at pre-programmed: – Distance(s) – Time(s) – Date(s) – Fare(s) – Amount(s) |
| Tariff Program Change | Manual by Key Via Radio By Programmer By Chip Card By Infrared Programmer |
| Peripheral Connections | – Printer – Magnetic Card Reader – Chip Card Reader/Writer – Infrared Passenger Sensor – Mobile Data Terminal – Modem – Cellular Phone |
| Communications Ports | – Internal COM1 and COM2 RS232 +/- 12 Volts STD Baud Rate from 300 to 15200 Baud – 4 Input / Output TTL level |
| Communications Protocols | GMSI Mobilstar RomaNet Telecom It. (Upgradable) |
| Operative Firmware | Upgradable firmware on Flash |
| Transducer | Mechanical Hall Effect or Internal adapter for electronic speedometer up to 100.000 l/km |
| Power Outputs | 1 Roof Light 25 Watts 4 Programmable power outputs 5 Watts |
The Digitax F1 Taximeter has several communication channels that make possible the communication with the external world.
Two independent RS232 serial ports at baud rate from 300 to 115200 and a 4 wire synchro channel plus a special printer driver, allow the interfacing to several devices at the same time.
The Commtax 2 included protocol allows remote managing of all the taximeter, magnetic Credit Card reader , chip card and printer functions.
The link to a dispatch system or another mobile terminal is accomplished on the RS232 port at any baud rate from 300 to 115200 using a frame structure N, 8, 1: signal level +/- 12 V, using the protocol COMMTAX 2 described in this document.
Digitax F1 Plus Interfacing System
